RRP includes engine only. Propeller and rigging kit (cables and gauges) sold separately and cost will differ depending on required set-up. Please discuss the options with your Honda Marine Dealer
Overview

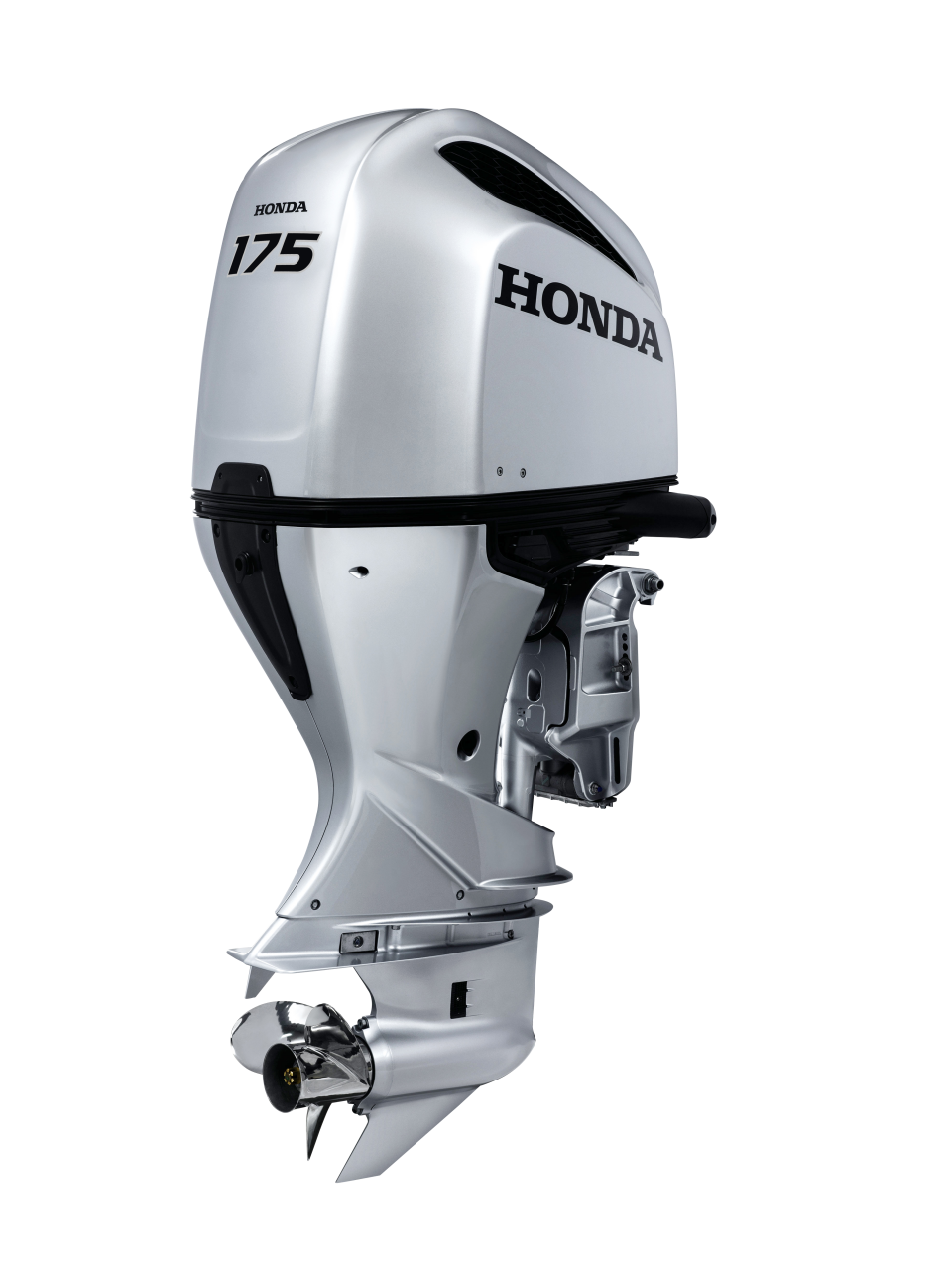

BF175D
Combining advanced automotive and marine technologies, the BF175D combines the ultimate power of the Honda 3.6 litre V6 with legendary reliability, efficiency, performance and style. Honda's Drive By Wire system delivers superb control and smooth operation. With 175HP at your fingertips, all you need to do is decide where to go.
- PEACE OF MIND - World's largest engine manufacturer
- INNOVATION - Honda exclusive technology
- ENGINEERED FOR LIFE - More time on the water
- UNMATCHED PERFORMANCE - Superior power
- COVERED BY THE BEST - Unrivalled 7 Year* Domestic Warranty
Features
TAKE A CLOSER LOOK
your honda advantage

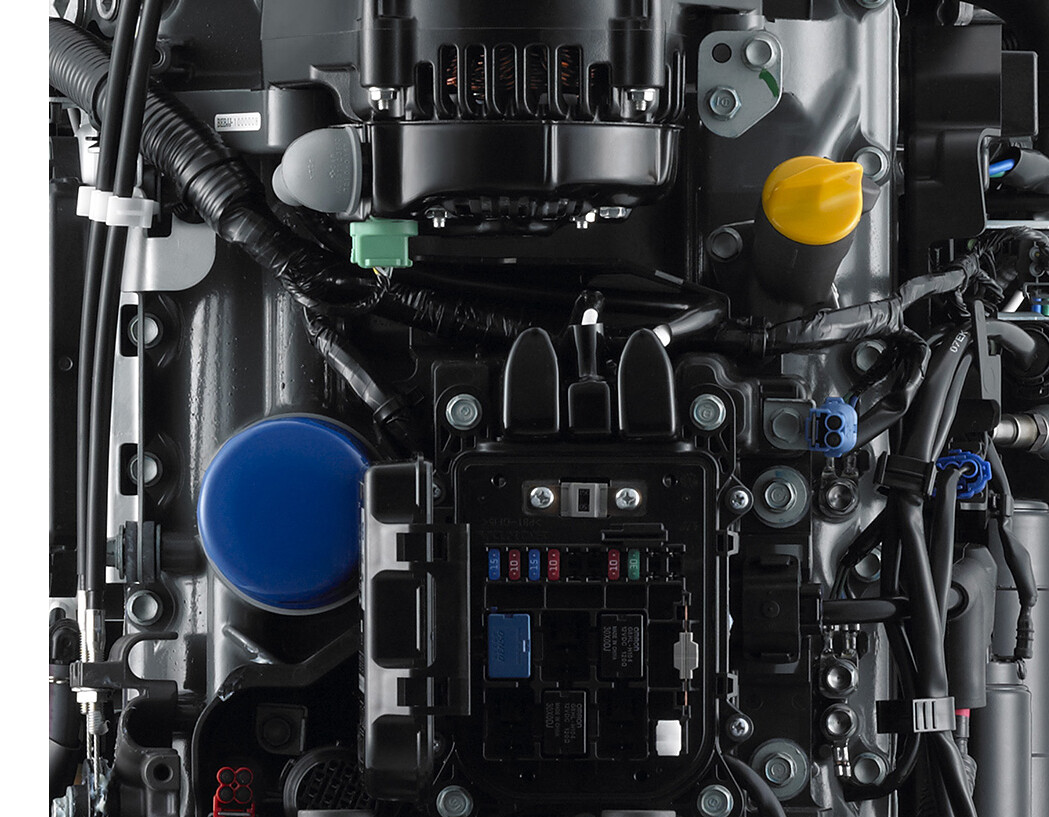

high output alternator
dual channel induction
lean burn control - ecomo
BLAST (Boosted low speed torque)
oxygen and knock sensors
drive by wire
7 YEAR DOMESTIC WARRANTY
3 year commercial warranty
rigging options
mechanical Remotes
Drive by wire remotes
Gauges & Displays
switches
Specifications
YOUR outboard IN DETAIL
Engine
| Type | V6 4-stroke 24 valve |
| Displacement | 3583cc |
| Bore & Stroke | 89 x 96mm |
| Full Throttle RPM Range | 5000-6000 |
| HP Rating @ Propshaft | 175HP @ 5,500 RPM |
| Valves Per Cylinder | Four |
| Fuel Delivery | Programmed multipoint fuel injection |
| Ignition System | Electronic |
| Starting System | Electric |
| Cooling System | Water cooled system with thermostat |
| Alternator | 90AMP (60AMP Charging) |
Dimensions
| Recommended Transom Height | 25” |
| Dry Weight | 285kg |
Drive
| Gear Ratio | 1.87:1 |
| Gear Shift | F-N-R |
| Propellor | Optional |
