RRP includes engine only. Propeller and rigging kit (cables and gauges) sold separately and cost will differ depending on required set-up. Please discuss the options with your Honda Marine Dealer
Overview

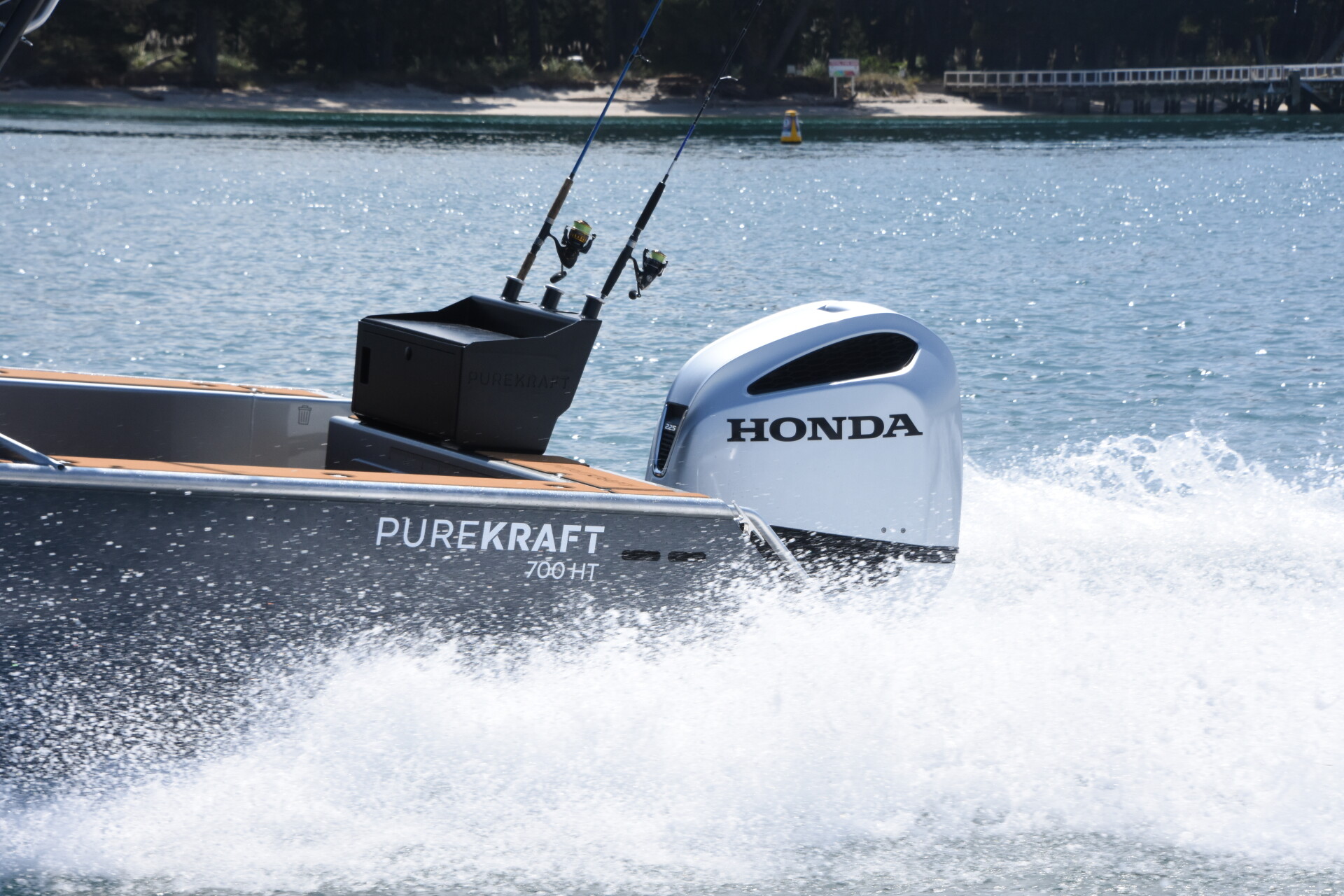

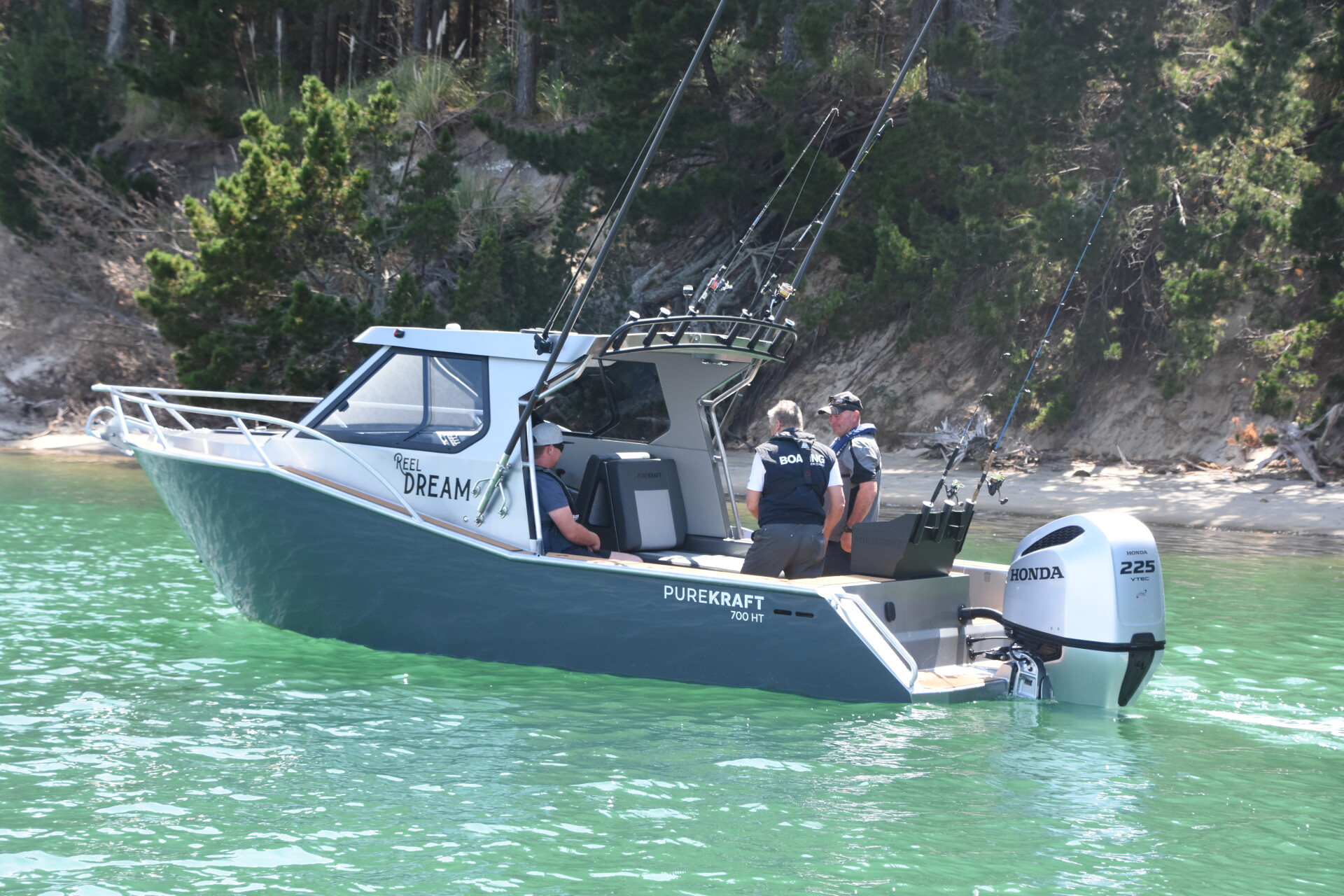

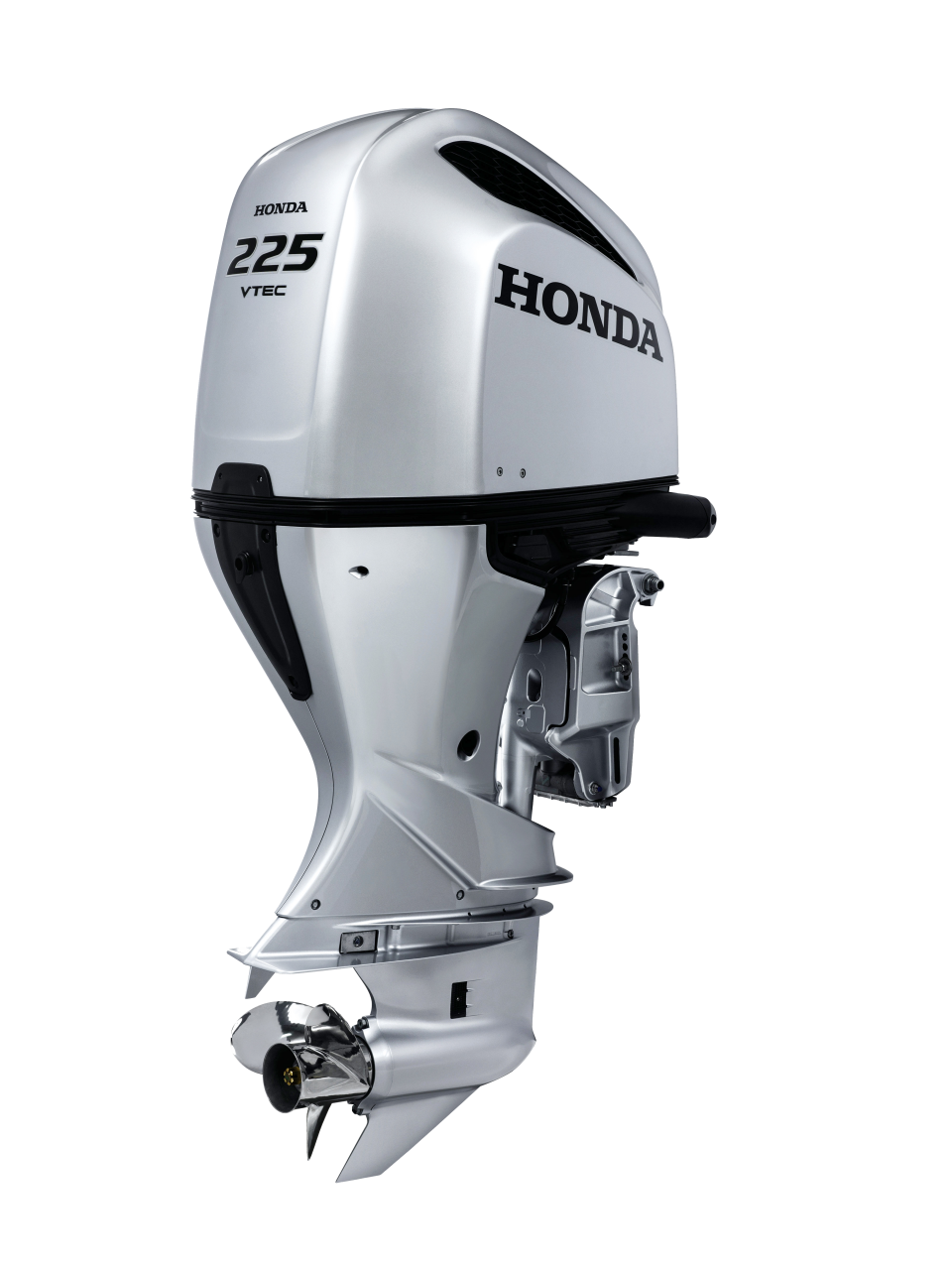

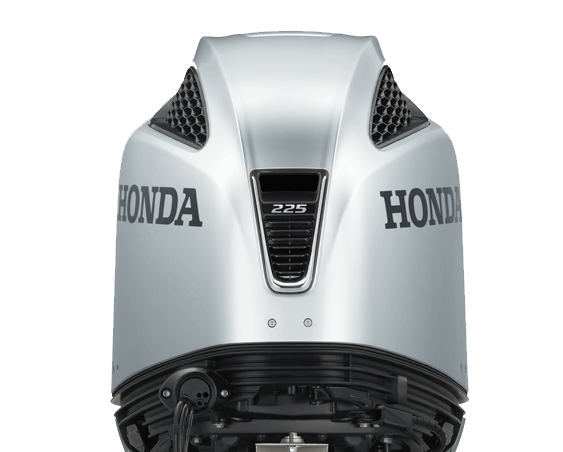

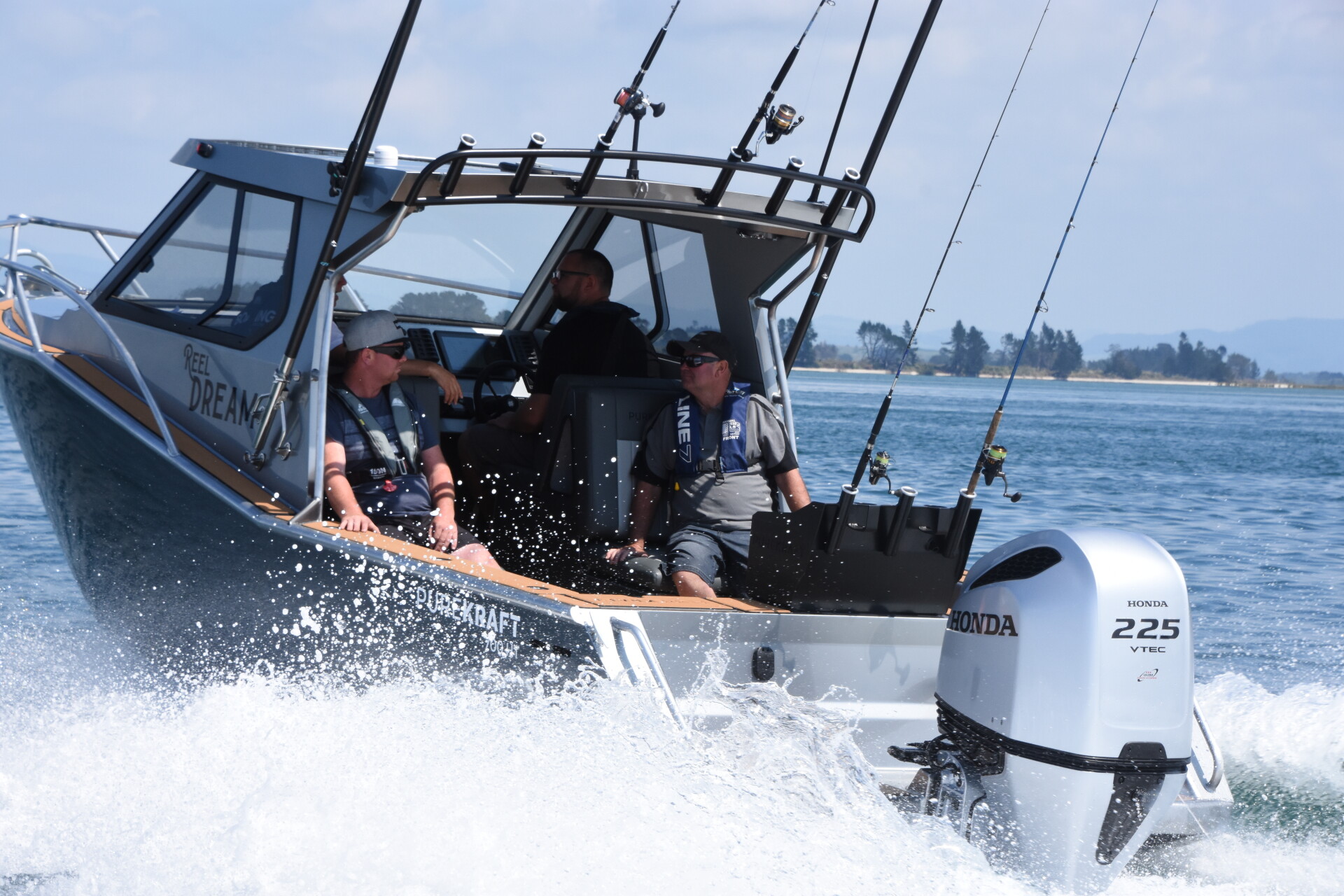

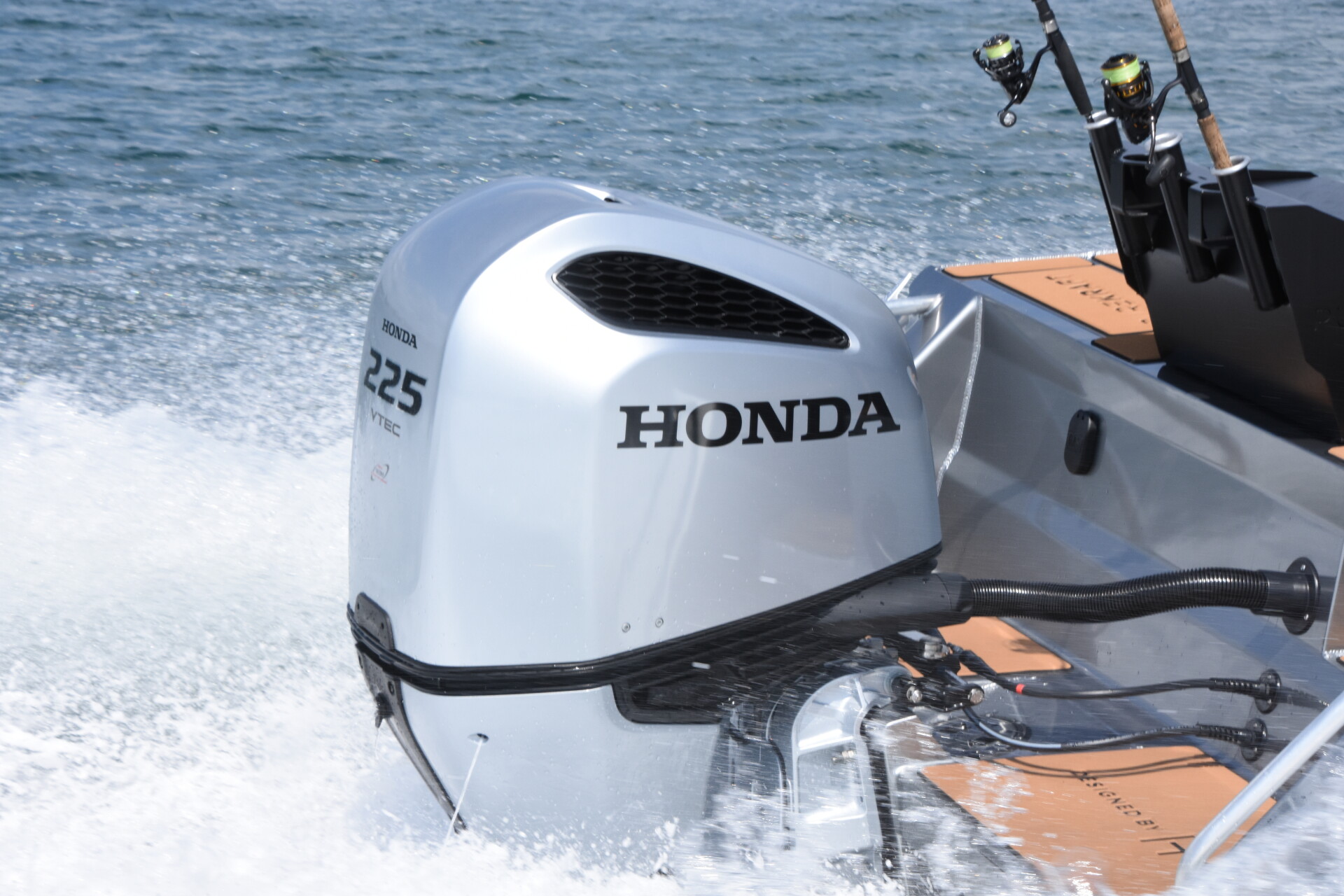

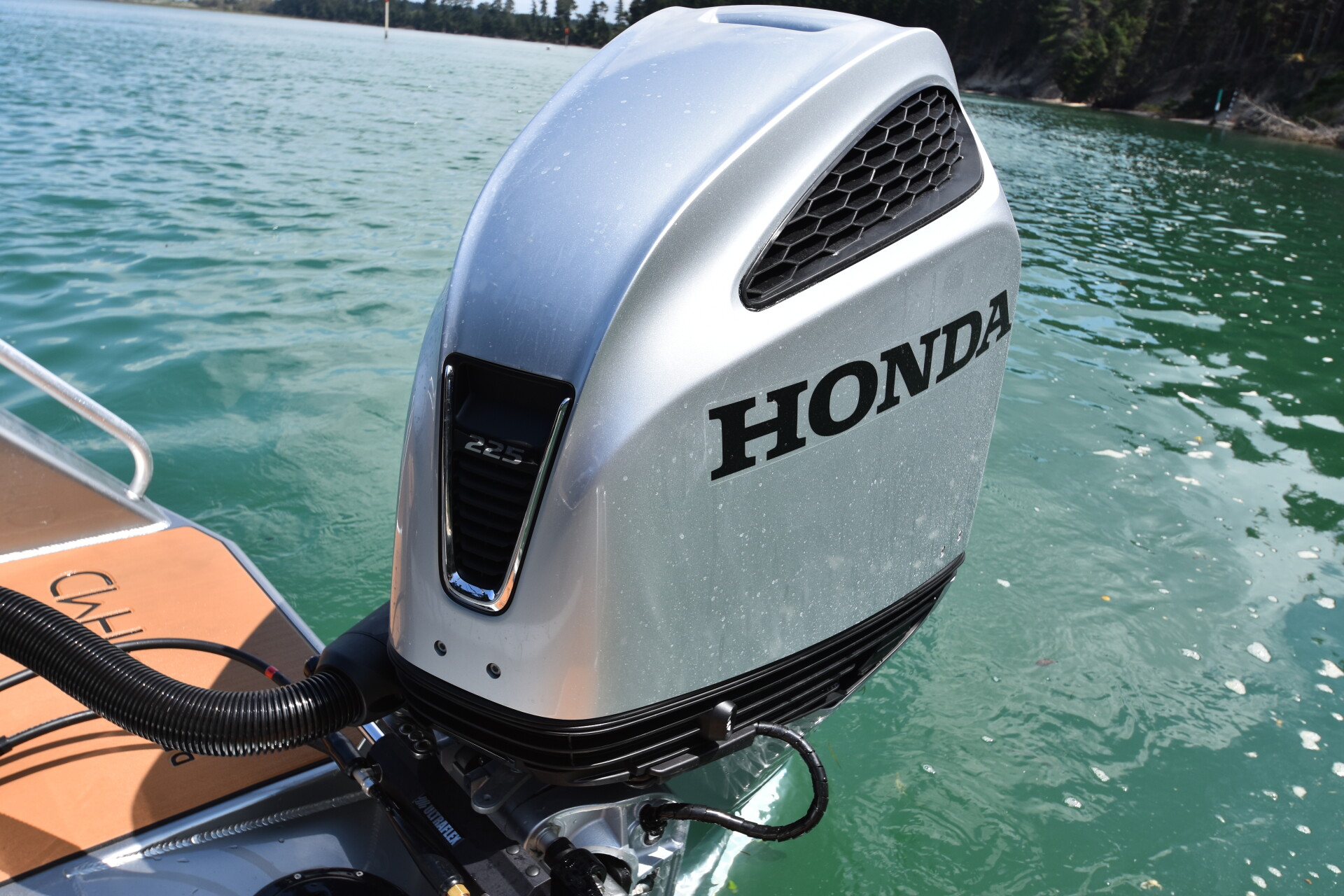

BF225D
Honda innovation and a large displacement V6 engine, a perfect match. The BF225D offers the ultimate in performance and durability with a unique blend of automotive and marine engine technology to deliver 225HP. With the most technologically advanced power available, the BF225D offers maximum time on the water, whether you are a commercial operator or weekend cruiser.
- PEACE OF MIND - World's largest engine manufacturer
- INNOVATION - Honda exclusive technology
- ENGINEERED FOR LIFE - More time on the water
- UNMATCHED PERFORMANCE - Superior power
- COVERED BY THE BEST - Unrivalled 7 Year* Domestic Warranty
Features
TAKE A CLOSER LOOK
YOUR honda advantage
high output alternator
vtec racing technology
dual stage induction
BLAST (Boosted low speed torque)
lean burn control - ecomo
Drive by wire
7 YEAR DOMESTIC WARRANTY
3 year commercial warranty
rigging options
mechanical Remotes
drive by wire remotes
Gauges & Displays
switches
Specifications
YOUR outboard IN DETAIL
Engine
| Type | 3.6 litre V6 4-stroke 24 valve |
| Displacement | 3583cc |
| Bore & Stroke | 89mm x 96mm |
| Full Throttle RPM Range | 5000 - 6300 |
| HP Rating @ Propshaft | 225HP @ 5500 RPM |
| Valves Per Cylinder | Four |
| Fuel Delivery | Multipoint programmed fuel injection |
| Ignition System | Microcomputer programmed |
| Starting System | Electric |
| Cooling System | Water Cooled |
| Alternator | 90AMP (60AMP Charging) |
Dimensions
| Recommended Transom Height | 25" & 30” |
| Dry Weight | L Type - 281Kg, XL Type - 286kg, UL Type - 291kg |
Drive
| Gear Ratio | 1.87:1 |
| Gear Shift | F-N-R |
| Propellor | Stainless Steel |
