ULTIMATE PERFORMANCE

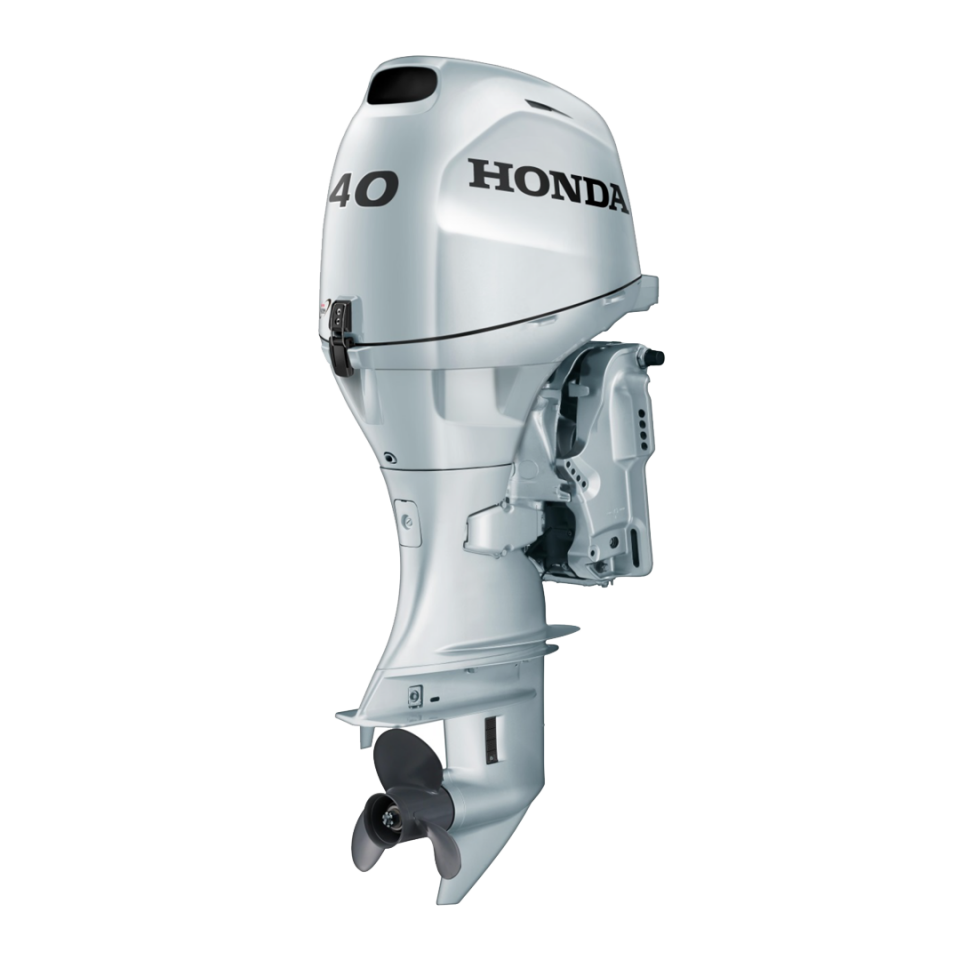

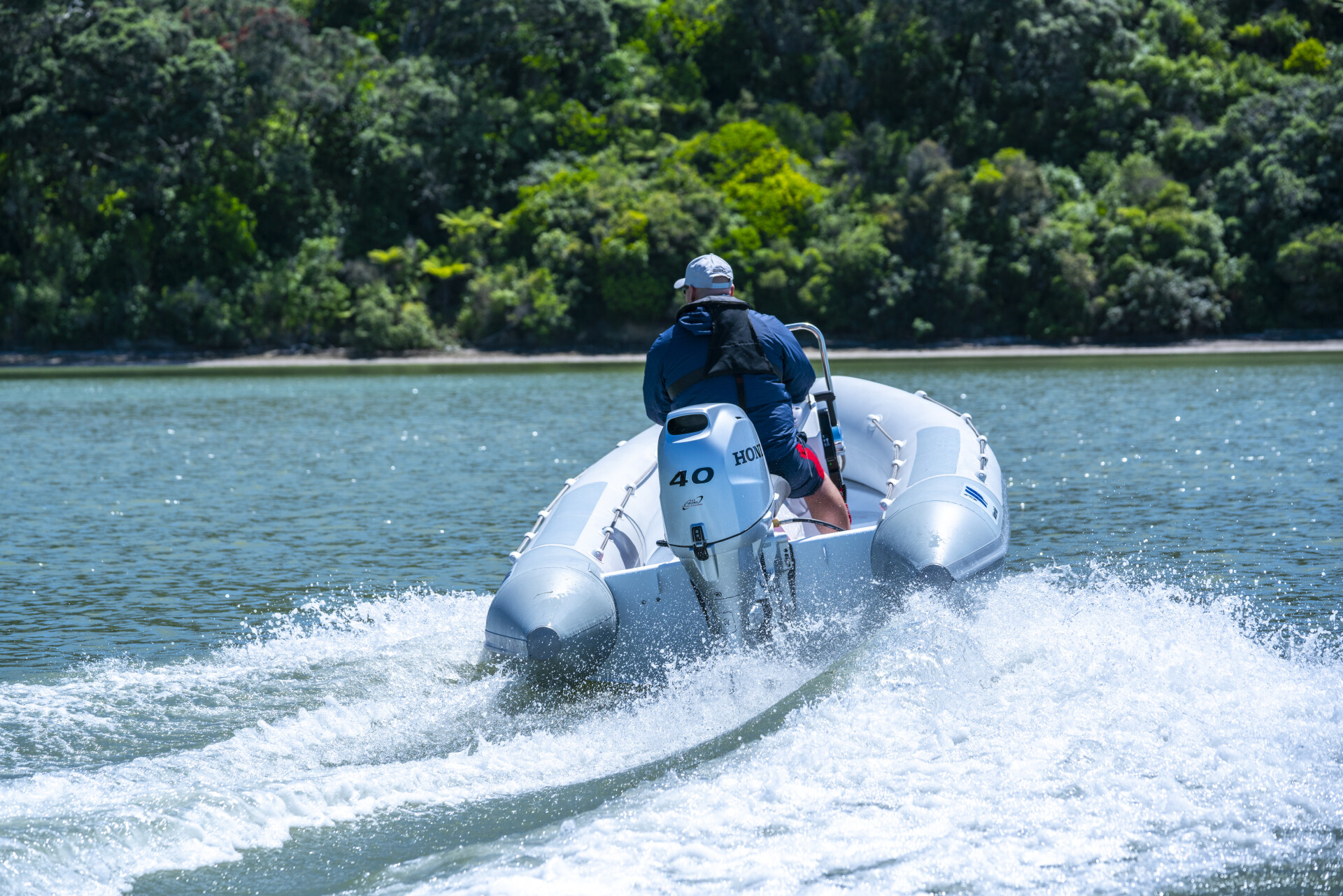

The new Honda 40hp outboard engine retain its class-leading lightweight, compact packaging, enhanced with PGM-FI electronic fuel injection. It features the innovative BLAST™ (Boosted low speed torque) for rapid acceleration, ECOmo Lean Burn Control^® for exceptional fuel economy at cruise and NMEA 2000^® which shows all engine and fuel data on a GPS screen.

Lightest in class, most fuel efficient in class, best acceleration in class, the list goes on. Tick all the boxes with the new Honda BF40.

COMPACT INNOVATION

The BF40 and BF50 outboard engines retain their class-leading lightweight, compact packaging, enhanced with PGM-FI electronic fuel injection, Honda’s original Boosted Low Speed Torque (BLAST™) air/fuel ratio and ignition-timing technology, and Lean Burn Control^® to deliver powerful startup and acceleration together with outstanding fuel economy during cruising (ECOmo).

Winning Design

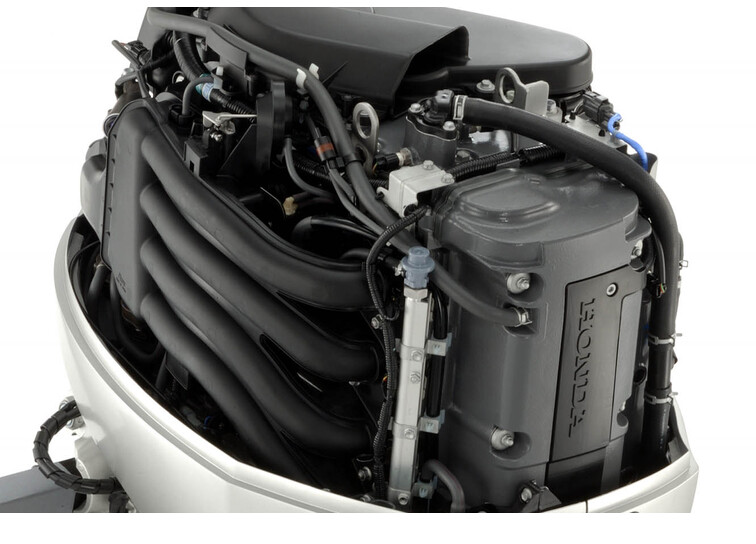

A reduction gear is employed to achieve compact engine layout by offsetting the in-line three-cylinder engine forward, while a long-branch plastic inlet manifold and miniaturised electronic components further contribute to the class-topping lightweight, compact design.
Like Honda’s larger outboard engines, the BF40 and BF50 feature a striking ‘wing form’ design, emphasising the design concept of slimness and strength.

ENGINE

Type: 3-cylinder 4-stroke 6 valves
Displacement: 808cc
Bore & Stroke: 89 x 96
Full Throttle RPM Range: 4500 - 5500 RPM
HP Rating @ Propshaft: 40HP @ 5500 RPM
Valves per Cylinder: Two
Fuel Delivery: Programmed fuel injection
Ignition System: Solid State
Starting System: Electric
Cooling System: Water Cooled
Alternator: 22-Amp

DIMENSIONS

Recommended Transom Height: 20”
Dry Weight: 100kg

DRIVE

Gear Ratio: 2.08:1
Gear Shift: F-N-R
Propellor: Alloy included

MULTI-FUNCTION TILLER HANDLE

Available as an option, the multi-function tiller handle for the BF40/50 incorporates a power trim-tilt switch in the throttle grip, so the operator can trim the engine while underway with clear focus on the water.

An integrated engine alert panel provides both visual and audible alerts including oil pressure, overheating, engine management and battery charging to ensure peace of mind.

17amp battery charging capacity – at the top of its class for outboard engines with the same output.
BF40 and BF50 can be used with a wide range of boat types due to their lightweight, compact design.
A new one-touch plastic cap permits
easy inspection of anode wear inside
the engine, for significantly improved
ease of maintenance.
Noise levels have been reduced by 1.0dB over the previous model.
4-Front Corrosion Protection. A patented, ‘double-sealed’ multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.
NMEA2000^® compliant.

MAINTENANCE INFO

MAINTENANCE SCHEDULE

COMPONENT ID

ALL SERVICES CARRIED OUT USING GENUINE HONDA PARTS AND OILS

** Service times are based on the Maintenance Schedule in your Owner's Manual. No allowances are made for work that is to be carried out in excess of this schedule or at owner's request. Pricing does not include Parts and Consumables.**
