ULTIMATE PERFORMANCE

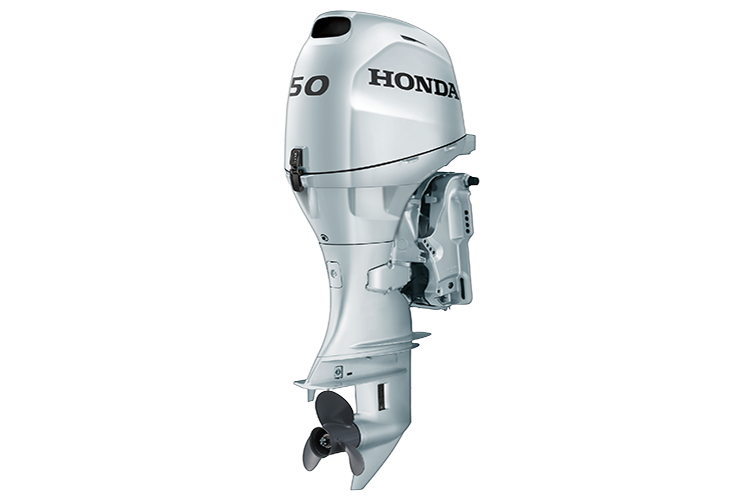

The Honda 50hp outboard is an all new ground up design that showcases the very latest direction in outboard motor design. It features BLAST™ (Boosted low speed torque) for rapid acceleration, ECOmo Lean Burn Control® for exceptional fuel economy at cruise and NMEA which enables all engine and fuel data to be viewed on a GPS screen.

The new Honda 50 does away with the need of an auxiliary motor for trolling, offering quiet, smoke free idling and low speed operation. The future is here!

COMPACT INNOVATION

The BF40 and BF50 outboard engines retain their class-leading lightweight, compact packaging, enhanced with PGM-FI electronic fuel injection, Honda’s original Boosted Low Speed Torque (BLAST™) air/fuel ratio and ignition-timing technology, and Lean Burn Control® to deliver powerful startup and acceleration together with outstanding fuel economy during cruising (ECOmo).

Winning Design

A reduction gear is employed to achieve compact engine layout by offsetting the in-line three-cylinder engine forward, while a long-branch plastic inlet manifold and miniaturised electronic components further contribute to the class-topping lightweight, compact design.
Like Honda’s larger outboard engines, the BF40 and BF50 feature a striking ‘wing form’ design, emphasising the design concept of slimness and strength.

ENGINE

Type
3-cylinder 4-stroke 6 valves
Displacement
808cc
Bore & Stroke
89 x 96
Full Throttle RPM Range
5500 - 6000
HP Rating @ Propshaft
50HP @ 5750 RPM
Valves per Cylinder
Two
Fuel Delivery
Programmed fuel injection
Ignition System
Solid State
Starting System
Electric
Cooling System
Water Cooled
Alternator
22-AMP

DIMENSIONS

Recommended Transom Height
TBC
Dry Weight
TBC

DRIVE

Gear Ratio
2.08:1
Gear Shift
F-N-R
Propellor
Alloy included

MULTI-FUNCTION TILLER HANDLE

Available as an option, the multi-function tiller handle for the BF40/50 incorporates a power trim-tilt switch in the throttle grip, so the operator can trim the engine while underway with clear focus on the water.

An integrated engine alert panel provides both visual and audible alerts including oil pressure, overheating, engine management and battery charging to ensure peace of mind.



  • 17amp battery charging capacity – at the top of its class for outboard engines with the same output.
  • BF40 and BF50 can be used with a wide range of boat types due to their lightweight, compact design.
  • A new one-touch plastic cap permits easy inspection of anode wear inside the engine, for significantly improved ease of maintenance.
  • Noise levels have been reduced by 1.0dB over the previous model.
  • 4-Front Corrosion Protection. A patented, ‘double-sealed’ multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.
  • NMEA2000 compliant.



MAINTENANCE INFO

MAINTENANCE SCHEDULE

COMPONENT ID

All services carried out using Genuine Honda Parts and Oils

** Service times are based on the Maintenance Schedule in your Owner's Manual. No allowances are made for work that is to be carried out in excess of this schedule or at owner's request. Pricing does not include Parts and Consumables.**

Your Service agent can be identified via the display of this signage on their building and in addition to this they should also be displaying the Honda Genuine Parts and Accessories signage.



20 Hour Service

Hours to complete
2.5

100 Hour Service

Hours to complete
3.25

200 Hour Service

Hours to complete
4
