More quality time on the water.

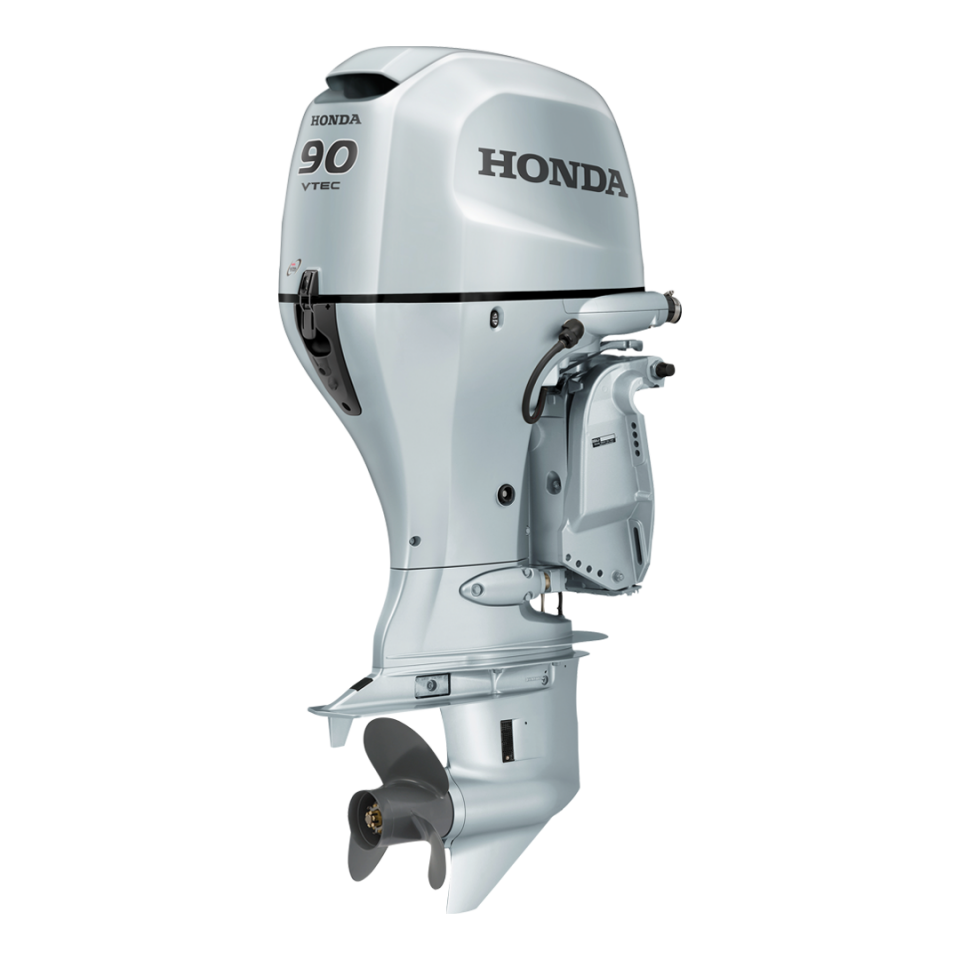

You’re looking at Honda’s most advanced technology – a lightweight powerhouse in a mid-range package. The BF90 offer a host of Honda legendary technological advancements and exclusives.

Starting with VTEC™ technology on the BF90. VTEC™ provides a superior blend of power, torque, and fuel efficiency at any speed. It’s the same Honda exclusive feature used on Honda cars, a premium innovation put to good use on our outboards.

Add in Multi-port Electronic Fuel Injection, BLAST™, Lean Burn Control®, and a 3 Way Cooling system, and you’ve got a pair of motors that are explosive upon acceleration, economical, efficient, and durable – which means maximum quality time on the water for you and minimum fuss.

Proven 4-stroke design

World-renowned Honda quality combines proven reliability and superior fuel efficiency, with no oil mixing.

Legendary Honda Reliability

The technology we applied to our 75 and 90hp outboard engine is the very same that powers one of the most popular cars in the world, the Honda Fit.

ENGINE

Type
4-Stroke SOHC 4-Cylinder/16 Valves
Displacement
1,496 cc (91.4 cubic inches)
Bore & Stroke
73 mm x 89.4 mm (3.0 x 3.5 inches)
Full Throttle RPM Range
5,300-6,300 RPM
HP Rating @ Propshaft
90 HP @ 5,800 RPM
Valves per Cylinder
Four
Fuel Delivery
Programmed Fuel Injection
Ignition System
Full-transition Battery Ignition
Starting System
Electric
Cooling System
Water Cooled
Alternator
TBC

DIMENSIONS

Recommended Transom Height
508 mm/20 inches
Dry Weight
163 kg/359 lbs.

DRIVE

Gear Ratio
2.33:1
Gear Shift
F-N-R
Propellor
Optional

FISHERMAN FRIENDLY VARIABLE SPEED TROLLING

Another great advantage for fishermen is the 75 and 90’s push button troll speed. Simply push up or down in 50rpm increments from 750rpm to 1000rpm. It’s standard on the tiller and optional on the remote.

3 POSITION TILLER HANDLE

The 3 Position Tiller Handle adjusts to your comfort for easiest hull maneuverability.

VTEC™ - SMOOTH ACCELERATION AND POWER

Available on the BF90, Honda’s Variable Valve Timing & Lift Electronic Control (VTEC™) system provides power where and when you need it. VTEC™ gives you a broader, flatter torque curve and smooth power delivery throughout the engine’s operating range. The result is a superior combination of power, torque and fuel economy. VTEC™ is the modern replacement for displacement.

MAINTENANCE INFO

MAINTENANCE SCHEDULE

COMPONENT ID

All services carried out using Genuine Honda Parts and Oils

** Service times are based on the Maintenance Schedule in your Owner's Manual. No allowances are made for work that is to be carried out in excess of this schedule or at owner's request. Pricing does not include Parts and Consumables.**

Your Service agent can be identified via the display of this signage on their building and in addition to this they should also be displaying the Honda Genuine Parts and Accessories signage.

 Honda Outboard Engines NZ

20 Hour Service

Hours to complete
3

100 Hour Service

Hours to complete
3.75

200 Hour Service

Hours to complete
4.75
