RELIABILITY IN A
COMPACT DESIGN

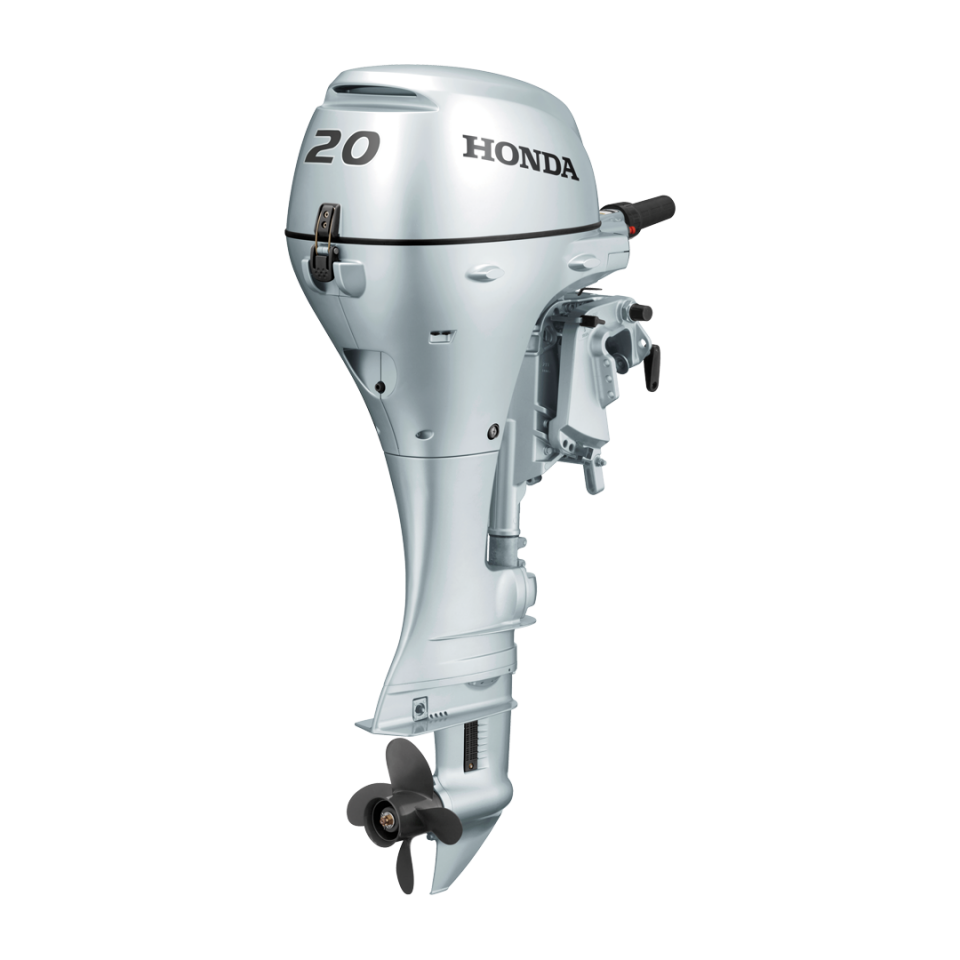

With a high output 350cc displacement and long-stroke design, the BF15 and BF20 are top performers, providing optimum torque at any speed. Programmed Ignition (PGM-IG) also accurately controls ignition timing during start-up and across the entire rev range for optimum overall operation.

A 12amp (electric start) alternator also ensures excellent charging power to keep batteries in top condition. Thanks to their incredible lightweight, the engines are also very easy to transport.

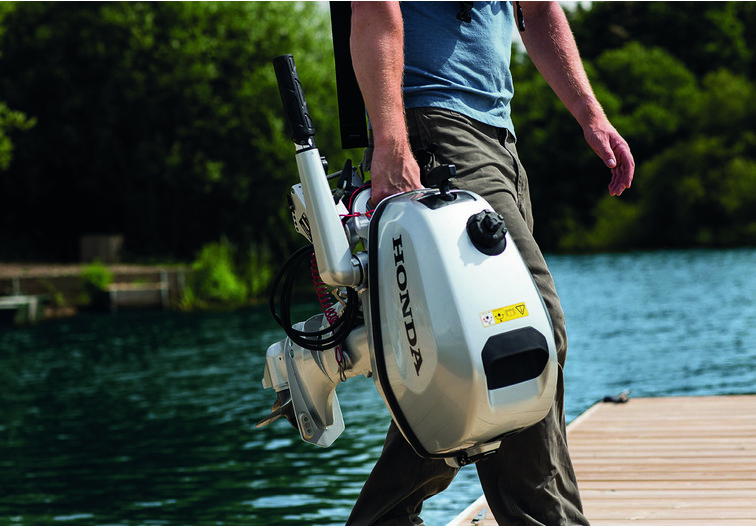

A foldaway handle positioned at the exact balance point of each engine makes it easy to carry the outboard in a level position.

SUPERIOR HANDLING POWER

The BF20 is equipped with Power Tilt and Gas Assist Tilt variations – perfect for effortless engine tilt operations and shallow-water running.

Cruising is improved and more comfortable with Honda’s unique pendulum-motion mounting system.
This system, featured in both the BF15 and BF20, is specially designed to reduce vibration and maximise user comfort.
A convenient Forward Mount Shift Lever allows fingertip shifting, while a Twist Grip Throttle and Tensioner ensures superior throttle friction, minimising driver fatigue.

ENGINE

Type
2 Cylinder 4 Stroke OHV
Displacement
350cc
Bore & Stroke
59mm x 64mm
Full Throttle RPM Range
5000-6000 RPM
HP Rating @ Propshaft
20HP @ 5500 RPM
Valves per Cylinder
Two
Fuel Delivery
Carburettor
Ignition System
PGM IG
Starting System
Recoil or recoil / electric
Cooling System
Water Cooled
Alternator
12 amp electric 6 amp recoil

DIMENSIONS

Recommended Transom Height
X 635 /XX 762
Dry Weight
46.5 kg

DRIVE

Gear Ratio
2.1:1
Gear Shift
F-N-R
Propellor
4 blade aluminium 9 1/4 x 10

POWER TILT & GAS ASSIST TILT

Honda’s exclusive Power Tilt, Gas Assist Tilt and Manual Tilt variations put these engines in a class of their own.

REVERSE EXHAUST RELIEF

Exhaust gases are diverted away from the
propeller while in reverse, allowing the propeller to run in clean water.

HIGHEST AMPS

12amp (electric start) and 6amp (manual start) alternators keep batteries in top condition with a lot more charging power.

BROAD RANGE OF MODELS

The BF20 is available in nine separate model variations including manual or electric start, power or gas assisted tilt, and tiller or forward control.

High output 350cc displacement engine. Provides superior torque throughout the entire rev range.

Auto Start Enrichment (on electric start models) automatically adjusts the air/fuel mixture for quick, easy starting and warm-up just like fuel injection.

12amp (electric start) alternator ensures battery charge is maintained while operating electronics and other accessories.

Convenient foldaway handle positioned at the exact balance point of each engine makes it easy to carry the outboard in a level position.

4-Front Corrosion Protection. A patented, ‘double-sealed’ multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.

MAINTENANCE INFO

MAINTENANCE SCHEDULE

COMPONENT ID

All services carried out using Genuine Honda Parts and Oils

** Service times are based on the Maintenance Schedule in your Owner's Manual. No allowances are made for work that is to be carried out in excess of this schedule or at owner's request. Pricing does not include Parts and Consumables.**

Your Service agent can be identified via the display of this signage on their building and in addition to this they should also be displaying the Honda Genuine Parts and Accessories signage.

 Honda Outboard Engines NZ

20 Hour Service

Hours to complete
1.5

100 Hour Service

Hours to complete
2

200 Hour Service

Hours to complete
2.5
