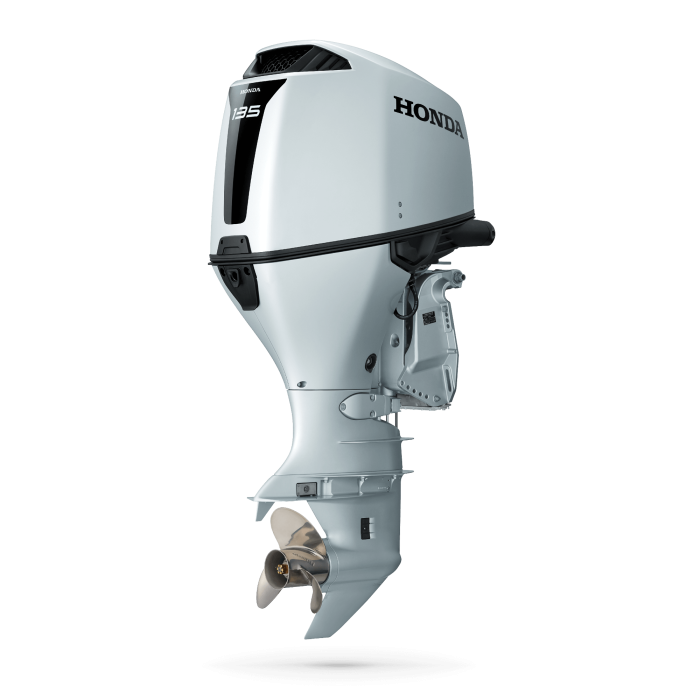

BF135
Better Features. Better Tech. Better Boating.

BF135

With world-renowned quality and reliability, the all-new redesigned BF135 features Honda’s Drive by Wire technology for instant response and superior control.

Honda's world famous automotive and marine engine technology offer an outstanding power-to-weight ratio, low fuel consumption, reliable power and reduced periodical maintenance. Resulting in maximum enjoyment and time on the water for a lower cost of ownership.

The counter rotation option makes the BF135 ideal for twin engine mounting and setups.

  • Boosted Low Speed Torque

    Boosted Low Speed Torque

  • Drive By Wire

    Drive By Wire

  • High Output Alternator

    High Output Alternator

  • Lean Burn Control

    Lean Burn Control

From $23,195

Choose Your Outboard
Boosted Low Speed Torque (BLAST)
Boosted Low Speed Torque (BLAST)
Honda’s revolutionary BLAST™ technology provides strong hole shot performance, getting the hull on the plane quicker. This air/fuel ratio and ignition-timing technology boosts engine torque at low RPM under rapid acceleration conditions. It’s NMEA compatible, meaning all engine data including speed, fuel consumption, cruising distance, etc can be displayed on the GPS screen.

Features

Take a Closer Look

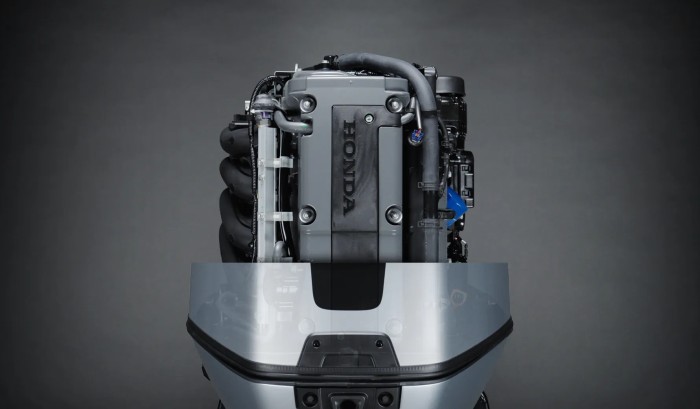

Dual Overhead Cam (DOHC)
Dual Overhead Cam (DOHC)

A powerful, compact 16-valve DOHC design creates more valve lift to pull in more air for increased horsepower. The low-maintenance design allows easy adjustment of the rocker arms. No multiple shims or trial-and-error adjusting needed.

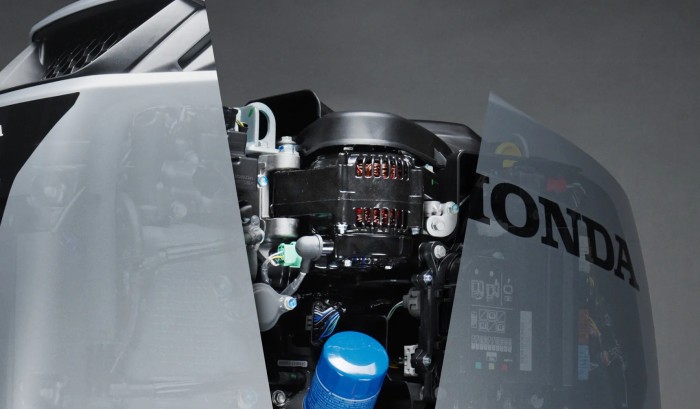

On Demand Charging
On Demand Charging

Honda’s proven 'on demand' belt-driven alternator reduces heat build-up and provides superior battery charging capability. 55 Amp total, with 30 Amp charging at 1000 RPM and 40 Amp+ charging above 2000 RPM. The Automatic Idle Charge system meets increasing demand from onboard electronic equipment. If electrical demand increases at idle speed, the alternator automatically produces a higher output.

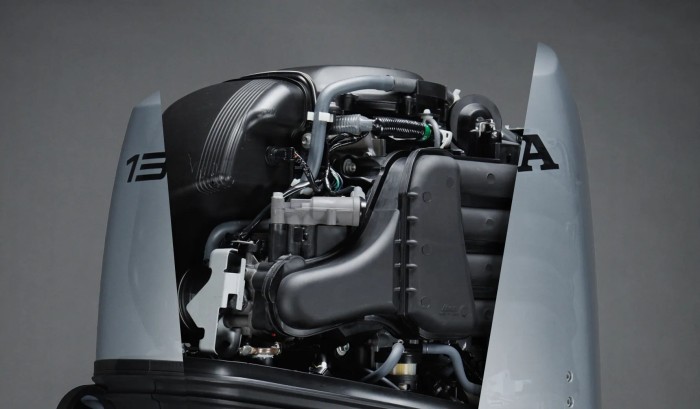

ECOmo - Lean Burn Control
ECOmo - Lean Burn Control

Honda's Lean Burn Control technology, ECOmo, maximises fuel efficiency by adjusting the air/fuel mixture according to speed and load. Offering significantly improved fuel consumption over direct injection two-stroke and competing four-stroke models. It's class leading performance.

Drive By Wire (DBW) or Mechanical Rigging
Drive By Wire (DBW) or Mechanical Rigging

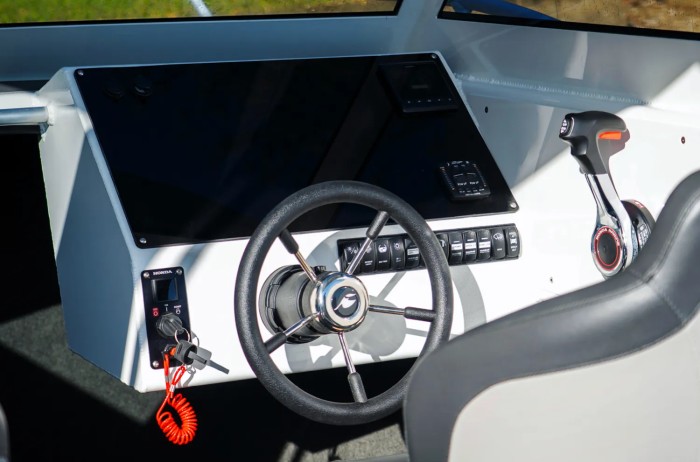

The Drive By Wire engine control units offer binnacle-mounted throttle controls for as many as four engines, or side-flush mount for single engines. There is also a mechanical control unit that supports up to two engines and a single-helm location, as well as a side-mount control box.

Programmed Fuel Injection (PGM-FI)
Programmed Fuel Injection (PGM-FI)

Honda’s renowned Programmed Fuel Injection is controlled by an advanced Engine Control Unit (ECU). Engine sensors precisely control the supply of fuel to the engine, providing easy starting, instantaneous throttle response and superior fuel economy.

Dual Stage Induction
Dual Stage Induction
Honda’s unique variable intake system controls the volume and velocity of air in the combustion chamber, then optimises air flow to match the engine’s speed. The result? Maximised combustion efficiency, increased torque at low RPMs, more power at high RPM and superb fuel efficiency. Making cruising as smooth as it is enjoyable.
Specifications
Engine Type4-cylinder 4-stroke DOHC 16 valve
Displacement2354 cc
Cylinders4
Valves16
Valves Per Cylinder4
Bore & Stroke87 mm x 99 mm
Full Throttle RPM Range5000 - 6000
HP Rating @ Propshaft135HP @ 5500RPM
Fuel DeliveryProgrammed fuel injection
Ignition SystemMicrocomputer programmed
Starting SystemElectric
Cooling SystemWater cooled
Alternator Output55 AMP
Battery Charging Capacity40 AMP
Recommended Transom Height15 " 20" & 25"
Dry Weight217 kg
Gear Ratio2.12:1
Gear ShiftF-N-R
PropellorSold Separately
NMEA 2000Yes
ECOmoYes
BF135

Packed with Features

BLAST, ECOmo, Drive By Wire controls and more, explore the features that make the BF135 the #bestbehindyou out on the water.

bf135-zig-zag-01-1400x800
bf135-zig-zag-02-1400x800

An Unrivalled Warranty

Every Honda Marine outboard comes with an unmatched 7-year* domestic (recreational) warranty. You can relax knowing that you're covered by the best warranty in the business!

Honda Marine outboards are the toughest on the NZ market and are backed by our industry leading 3-year* (or 1000 engine hour) commercial warranty.
